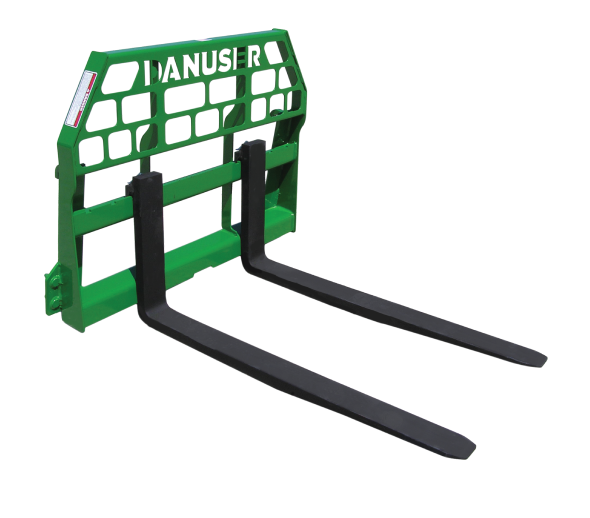

John Deere Loader Pallet Forks
Front-End loader quick attach mount | Full Brick Guard
Power through every load. Stay in command.
Purpose-built for John Deere front-end loaders with quick attach, these pallet forks are designed to keep you in control while handling demanding material. The full brick guard delivers consistent protection when working with shifting or uneven loads, giving you confidence to operate in tough conditions. A rail-style frame rated up to 6,000 lb., combined with tine options offering up to 5,500 lb. lift capacity, provides the strength needed for heavy, everyday use.
The frame and brick guard are designed to maintain clear visibility to the fork tips, helping you line up loads more accurately. Multiple tie-down points allow you to secure materials quickly, while integrated steps on both sides make it easier to get in and out of the loader throughout the day.
The frame and tines are available together or separately, giving you the flexibility to upgrade your setup your way. Pair your existing carriage-style tines with a Danuser frame built for heavy-duty support, or match Danuser tines to your current system. For added capability, the multi-purpose grapple helps you take on logs, brush, rock, and other hard-to-handle materials—without switching attachments.
FEATURESJohn Deere Series
Full Brick Guard
The frame for the John Deere 200/300/400/500 series quick attach front-end loader mount comes as a full brick guard and can support up to 6,000 lb.
Convenient
Multiple tie-down locations on frame.
Strong
Tines can suppport up to 5,500 lb.
Optional Multi-Purpose Grapple
Optional Multi-Purpose Grapple

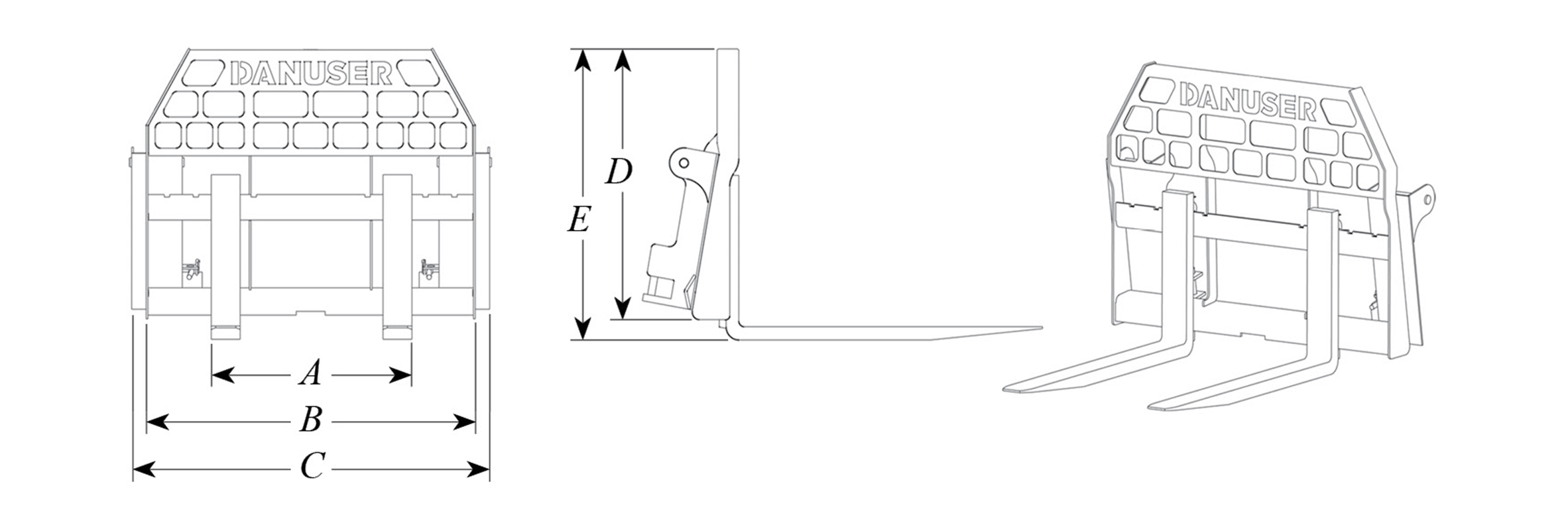

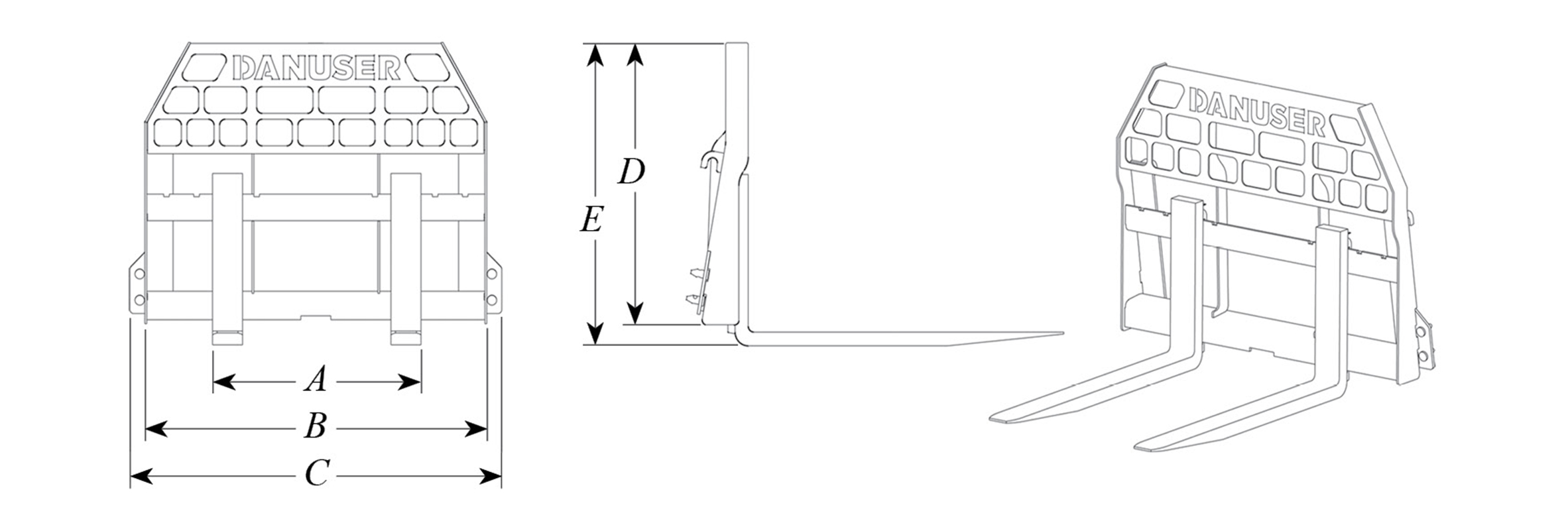

Options and Specifications
-
Fork Tines Lift Capacity
4,200 lb. or 5,500 lb.
-
Fork Tine Width (A) (Min/Max Inches)
9"-45"
-
Fork Tines Length (inches)
48"
-
Frame Width (B) (Inches)
45.5"
-
Overall Width (C) (Inches)
49.5"
-
Frame Height (D) (Inches)
35.75"
-
Overall Height (E) (Inches)
38.75"
-
Fork Tines Lift Capacity
4,200 lb. or 5,500 lb.
-
Fork Tine Width (A) (Min/Max Inches)
9"-45"
-
Fork Tines Length (inches)
48"
-
Frame Width (B) (Inches)
45.5"
-
Overall Width (C) (Inches)
50"
-
Frame Height (D) (Inches)
37"
-
Overall Height (E) (Inches)
38.75"
John Deere Pallet Fork Guards Gallery
Literature and Media
Other Products
